INNOVATOR Machinery is an international veneering machine manufacturer with the excellent quality and service in Taiwan. We specialize in designing, manufacturing, marketing and servicing various kinds of veneering machinery including guillotines, splicers and other veneer processing equipment for the decorative board, door and furniture industries as well as veneer and plywood processing plants. INNOVATOR Machinery also provides whole plant equipment planning to meet essential needs of our customers. All kinds of cost-effective veneering equipment manufactured by INNOVATOR Machinery make veneers utilized significantly. An increasing shortage of timber available for processing and manufacturing extraordinarily makes veneering technology important from an environmental point of view.

Video:

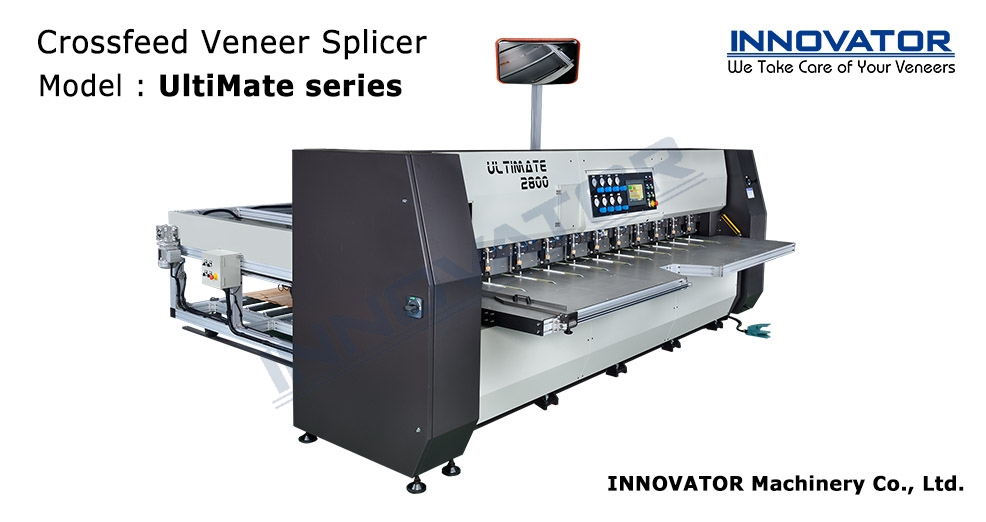

INNOVATOR’s Customer Production Site – Crossfeed Veneer Splicer (UltiMate 4000) with Roller Stacker

ULTIMATE 4000 PRE-GLUED VENEER CROSSFEED SPLICING MACHINE (Equipped with stacker station)
Technical features ULTIMATE 4000

Length work, mínimum – maximum: 450-4000mm
Thickness work, minimum – maximum: 0,35-1,5mm
Veneer sheet width: min. 75 mm (85 mm for 1st strip)
Production speed: up to 15 ~ 20 cycles/min.
Electric power: approx. 32 Kw
Compressed air: 5 BAR

ULTIMATE 3400 PRE-GLUED VENEER CROSSFEED SPLICING MACHINE (Equipped with stacker station)
Technical features ULTIMATE 3400

Length work, mínimum – maximum: 450-3400mm
Thickness work, minimum – maximum: 0,35-1,5mm
Veneer sheet width: min. 75 mm (85 mm for 1st strip)
Production speed: up to 15 ~ 20 cycles/min.
Electric power: approx. 28 Kw
Compressed air: 5 BAR

Technical features ULTIMATE 2800
Length work, mínimum – maximum: 450-2800mm
Thickness work, minimum – maximum: 0,35-1,5mm
Veneer sheet width: min. 75 mm (85 mm for 1st strip)
Production speed: up to 15 ~ 20 cycles/min.
Electric power: approx. 23 Kw
Compressed air: 5 BAR

Recommended Option(s)
1. intermediate transporter
2. edge reinforcing device (Model：ERD series)
3. automatic roller stacker with scissor lifting table for stacking veneer sheets
4. veneer automatic transport system（Model：VTS）

VENEER LAYONS REINFORCEMENT MACHINE ERD

Technical features ERD 3400
Veneer face length minimum – maximum: 1100-3400mm
Veneer face width minimum 500mm
Work thickness, minimum – maximum: 0,3-2mm
Production speed: 15-25 meters/minute
Cut-off Each Side 15-300mm
Electric power: approx. 1,1 Kw
Compressed air: 5 BAR

Technical features ERD 2800
Veneer face length minimum – maximum: 600-2800mm
Veneer face Width minimum 500mm
Work thickness, minimum – maximum: 0,3-2mm
Production speed: 15-25 meters/minute
Cut-off Each Side 15-300mm
Electric power: approx. 1,1 Kw
Compressed air: 5 BAR

DOUBLE SIDED VENEER GLUE APPLICATOR, GLUEMATE 700

Technical features
2 glue application rollers, both veneer pack sides glued in one pass.
Equipped with cooling unit to can work with UREA glue, can works also with PVA glue
Veneer pack high, minimum – maximum: 8 – 200mm
Minimum veneer pack length: 400mm
Veneer pack width, minimum – maximum: 55-650mm
Work speed: 16 meters minute approx.
Electric power: 2,4Kw approx.
Compressed air: 5 BAR

FANNING MACHINE, FANNIGMATE

Technical features
This machine makes a fan with the veneer pack to avoid the veneer sheets stick on each other.
Veneer pack width, minimum-maximum: 55 – 400mm
Veneer pack high minimum-maximum: 8 – 200mm
Veneer sheets thickness, minimum-maximum: 0,4 – 1,5mm
Work speed:28 meters minute approx
Electric power : 1,5Kw
Compressed air: 7 BAR

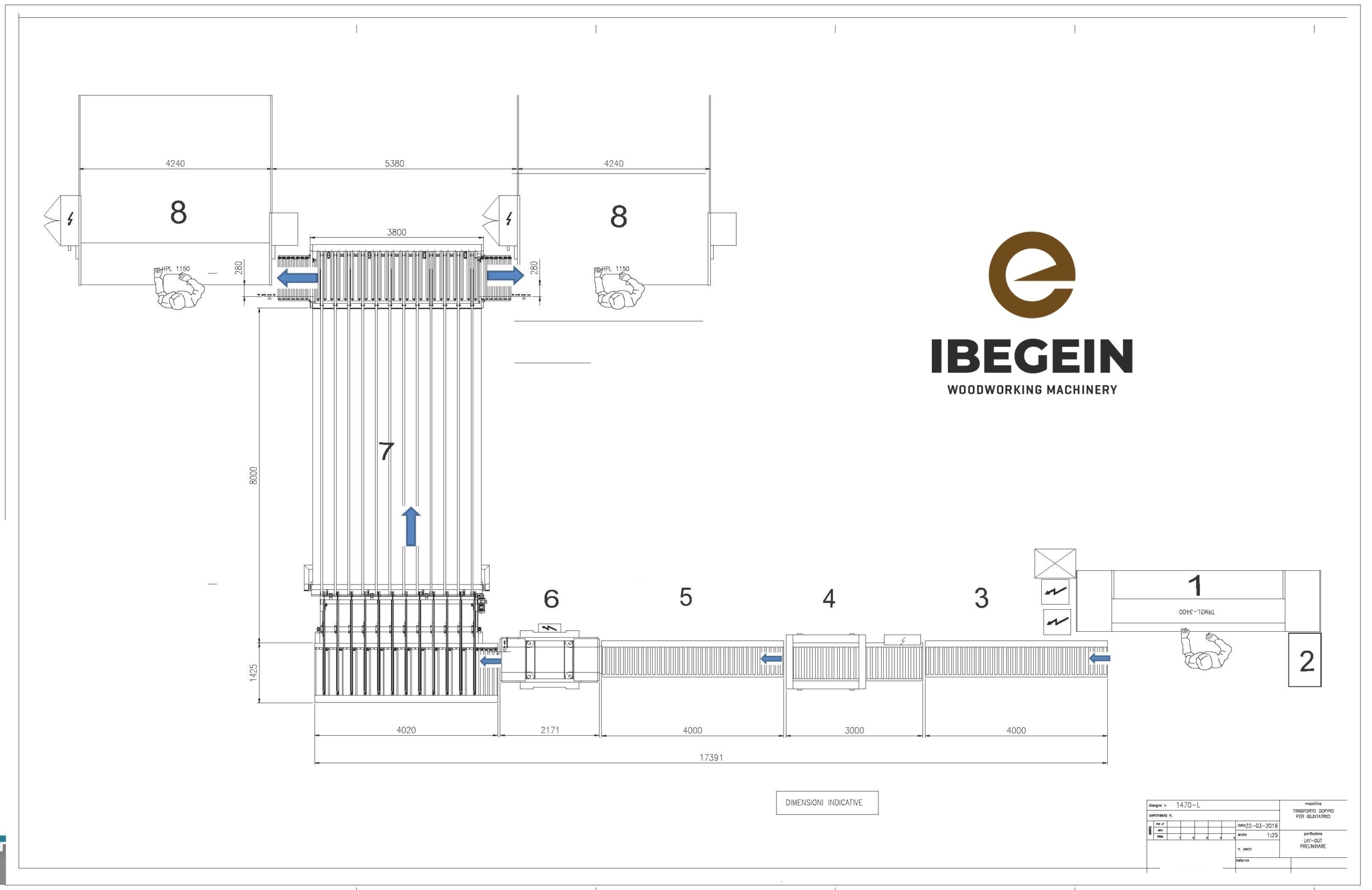

SMART AUTOMATIC VENEER LAYOS HIGH PRODUCTION LINE
Human resources decreasing with this system, can be operated by 3 persons, can produce till 200 veneer layons hour, jointed with glue.
The guillotine operator managing the line with a switch.
Composition:

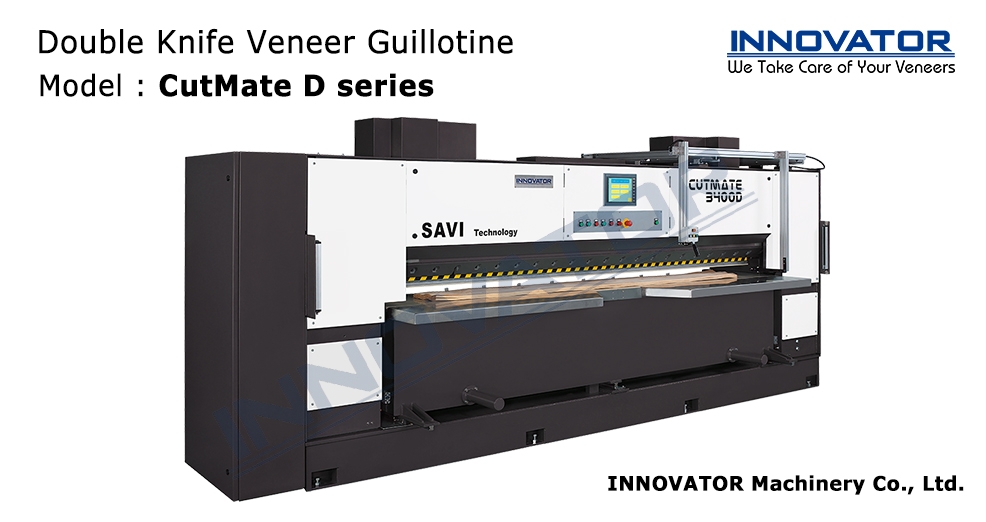

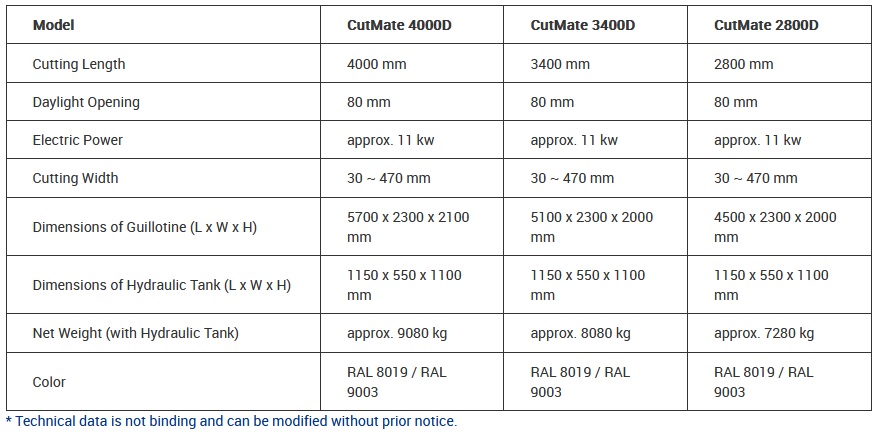

1.- Double knife guillotine
2.- Cross cutting guillotine
3.- Motorized conveyor roller to the glue applicator machine
4.- Glue applicator machine
5.- Motorized conveyor roller between glue applicator and fanning machine
6.- Fanning machine
7.- Automatic feeding system for both splicing machines with veneer packs accumulator, with motorized conveyor roller with 90º turn and 2 floors.
8.- Crossfeed pre glued veneer splicing machines.

Longitudinal veneer splicing machine VENEERPLUS (integrated gluing system)

Technical features
Equipped with gluing system, gluing + joining
Minimum length work: 350mm
Minimum width work: 45mm
Thickness work, minimum – maximum: 0,35-1,5mm
Production speed: up to 45 meters/minute
Electric power: approx. 5,5 Kw
Compressed air: 5 BAR
Heating Temperature 100-220ºC
Heating Zone 1200mm
It can be equipped with cooling unit to can work with UREA glue

Please ask us information for bigger veneer sheets thickness

Longitudinal veneer splicing machine VENEERPLUS G2
It’s particularly suitable for the furniture industry and high-end decorative plywood to splice up to 5 mm thick veneers with the integrated gluing system.

Technical features
Minimum veneer sheet length: 350mm
Minimum width work: 45mm
Thickness work, Minimum – Maximum: 0.5mm – 5mm
Production speed: 8 -45 meters/minute (Depending on the veneer sheet thickness)
Electric power: Approx. 10.8 Kw
Compressed air: 5 BAR
Heating Temperature 100-220ºC
Heating Zone 1500mm
